B-Line
B 15A
Available in:Africa, Australasia, Caribbean, Central America, East Asia, EU, Europe, Middle East, North America, Oceania, South America, South Asia, Southeast Asia
Technical details
| Model Name | B 15A |
|---|---|
| Type | 15" Active Subwoofer |
| ACOUSTICAL DATA | |
| Frequency range (-3 dB)* | 40 Hz – 220 Hz |
| Frequency range (-6 dB)* | |
| Frequency range (-10 dB)* | 33 Hz – 260 Hz |
| Coverage angles (-6 dB) [H x V] | Omnidirectional |
| Maximum Peak SPL** | 136 dB |
| System type | 1-way self-powered system |
| Crossover frequency | – |
| Transducers | 1 × 15" driver (3" voice coil) |
| Enclosure type | Vented box, APD (Adaptive Port Technology) |
| AMPLIFICATION | |
| Type | Single channel, Class-D with SMPS |
| Output power*** | 800 W |
| Protection | Short circuit, overheating, overcurrent |
| Connectors | Input signal: balanced XLR 3-pin female; Link output: balanced XLR 3-pin male; Power input: powerCON® 20A; Power link output: powerCON® 20A |
| Wiring | Pin N: Neutral; Pin L: Conductor; Pin E: Ground |
| Input sensitivity | +14 dBu (3.88 V), +4 dBu (1.23 V), 0 dBu (0.775 V), 0 dBV (1 V), -10 dBV (0.316 V) |
| DSP | 48 kHz/24 bit with extended dynamics; Processing latency: 1.1 ms |
| Processing | Factory and user presets, EQ, delay, directivity control, input sensitivity, phase inversion |

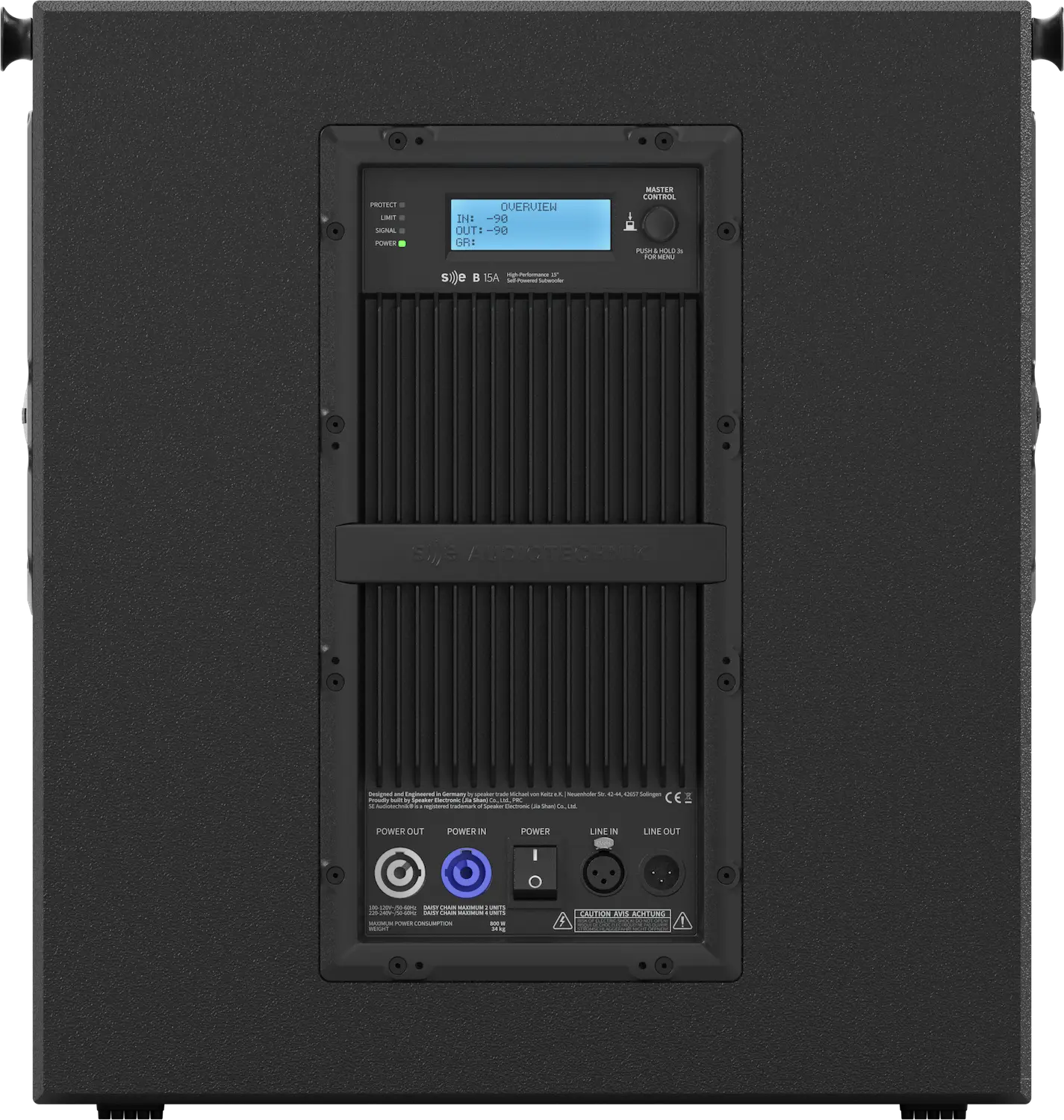

| User controls | Power: ON/OFF switch; DSP: display with digital encoder; LCD: 4x20 alphanumeric |
| MECHANICAL DATA | |
| Product dimensions [H x W x D] (incl. rigging) | 521 × 495 × 654 mm |
| Net weight | 33.5 kg |
| Packaging dimensions [H x W x D] | 613 × 550 × 733 mm |
| Total weight | 37 kg |
| Cabinet | 12 – 18 mm plywood |
| Cabinet | 15 – 18 mm plywood |
| Cabinet finishing | Black or white polyurea coating |

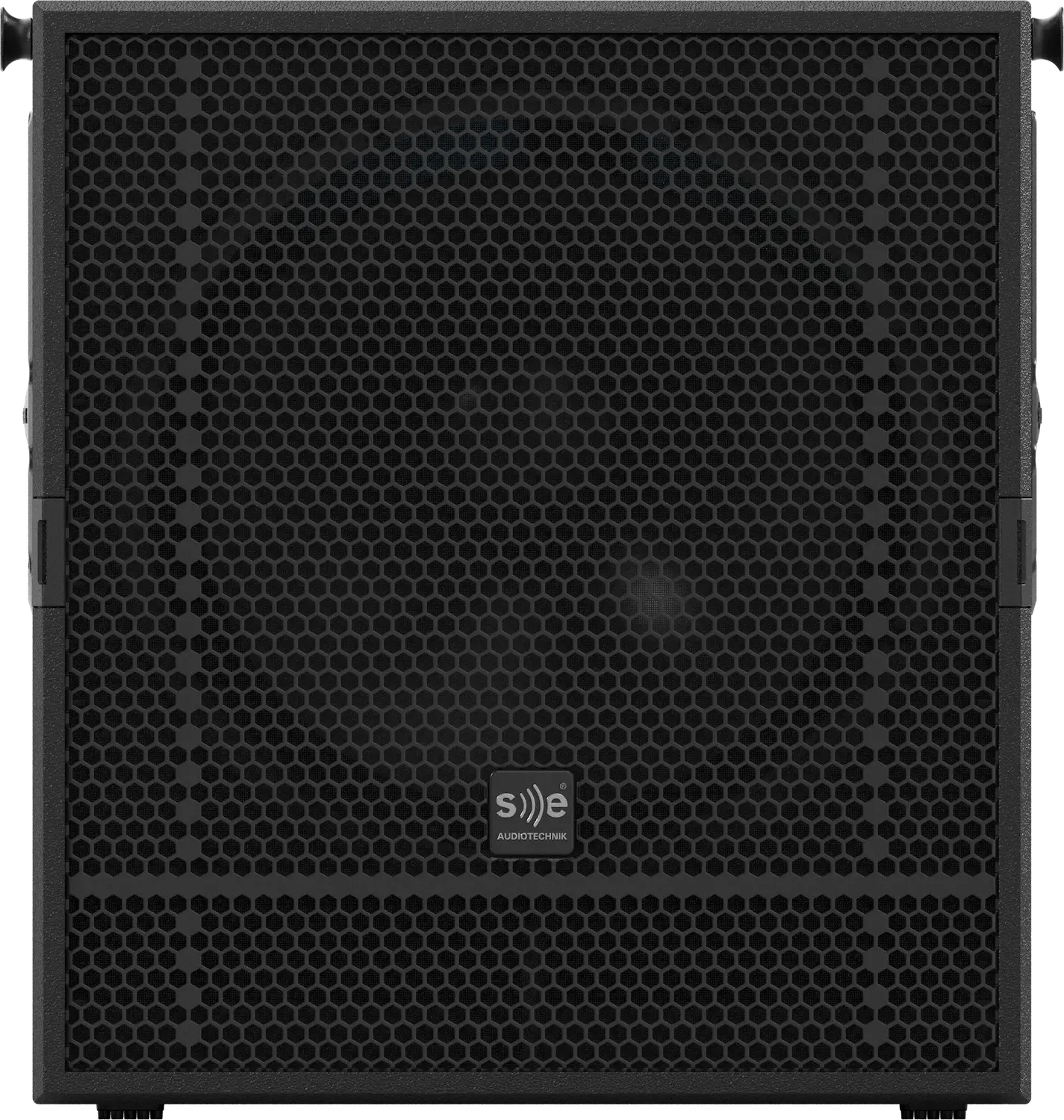

| Grille | Powder coated perforated steel |
| Hardware | 4 rubber feet and top recesses for stacking; M20 pole thread; 2 SE Audiotechnik® ergonomic handles |
| Stacking | Two-point SE Audiotechnik® stacking system |
| Splay angles | – |
| ACCESSORIES | |

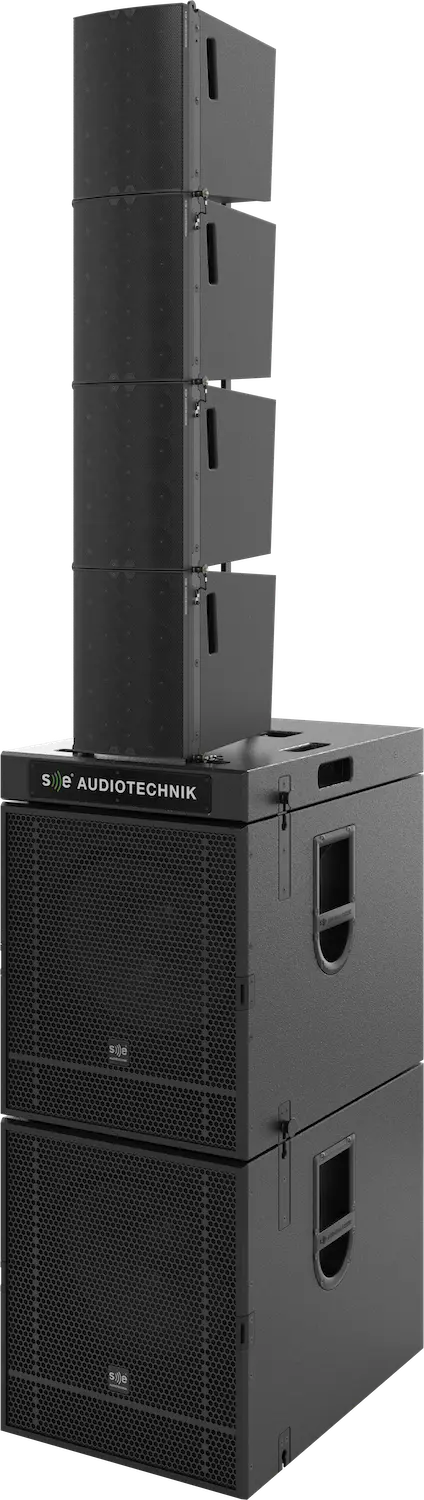

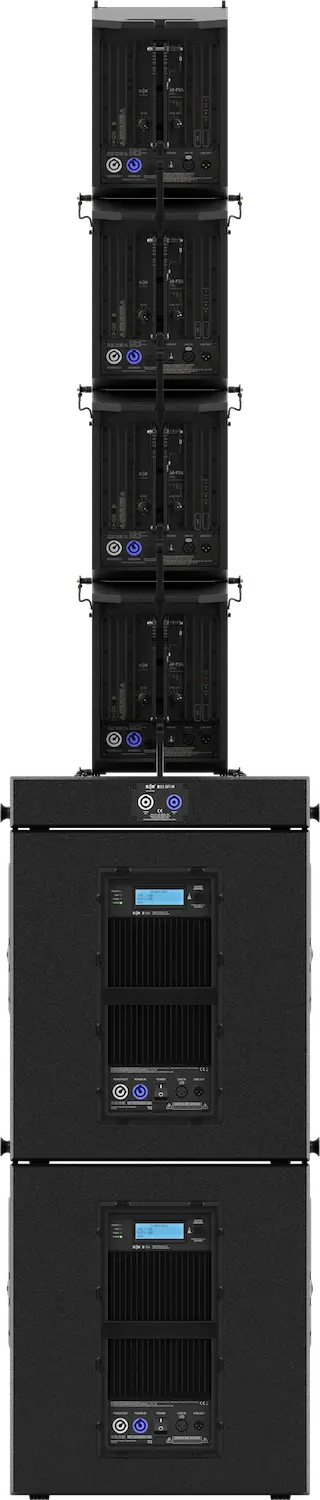

| B 15 SFi M | Stacking frame for M-F3A PRO |
| B 15 SFi L35 | Stacking frame for L 35 |
| B 15 FC | Flight case |
| B 15 TC | Transport cover |
| SPS20 | Pole bar |
| B 15 TD | Transport dolly (1 unit) |
| B 15 FS TK12 | Transport Kart (up to 2 units) |
| B 15 FS TK23 | Transport Kart (up to 6 units) |
| P801DL RC | Amplifier rain cover |
| ANNOTATION | |
| * | Measured with GENERAL preset with 6th-order Butterworth low-pass filter applied at 200 Hz |
| ** | Measured with 12 dB Crest factor Pink Noise, half space |
| *** | Short term rms output power according to CEA2006 |
Related products and accessories
Packaging:
Cardboard outer packaging: 77.85% (2565 g) | Foam inner padding: 19.42% (640 g) | Plastic protective sleeve: 2.73% (90 g)
The following overview contains information on the regulated substances used in the product and on compliance with the applicable limit values.
"Lead (Pb): Used in printed circuit boards (printed circuit board | electronic components on the PCB | internal connecting wires | copper traces) (permitted exemption).
"
"Lead (Pb): Used in connectors (electrical connectors) (permitted exemption). "
Mercury (Hg): The content is not detectable or is below the applicable regulatory limits.
Cadmium (Cd): The content is not detectable or is below the applicable regulatory limits.
Hexavalent Chromium (Cr(VI)): The content is not detectable or is below the applicable regulatory limits.
Polybrominated Biphenyls (PBB): The content is not detectable or is below the applicable regulatory limits.
Polybrominated Diphenyl Ethers (PBDE): The content is not detectable or is below the applicable regulatory limits.
"Lead (Pb): Used in connectors (electrical connectors) (permitted exemption). "
Mercury (Hg): The content is not detectable or is below the applicable regulatory limits.
Cadmium (Cd): The content is not detectable or is below the applicable regulatory limits.
Hexavalent Chromium (Cr(VI)): The content is not detectable or is below the applicable regulatory limits.
Polybrominated Biphenyls (PBB): The content is not detectable or is below the applicable regulatory limits.
Polybrominated Diphenyl Ethers (PBDE): The content is not detectable or is below the applicable regulatory limits.
Environmental Protection Use Period: 15 year(s)
