L-Line
L 65 UFB
Available in:Africa, Australasia, Caribbean, Central America, East Asia, EU, Europe, Middle East, North America, Oceania, South America, South Asia, Southeast Asia
Technical details
| Model Name | L 65 UFB |
|---|---|

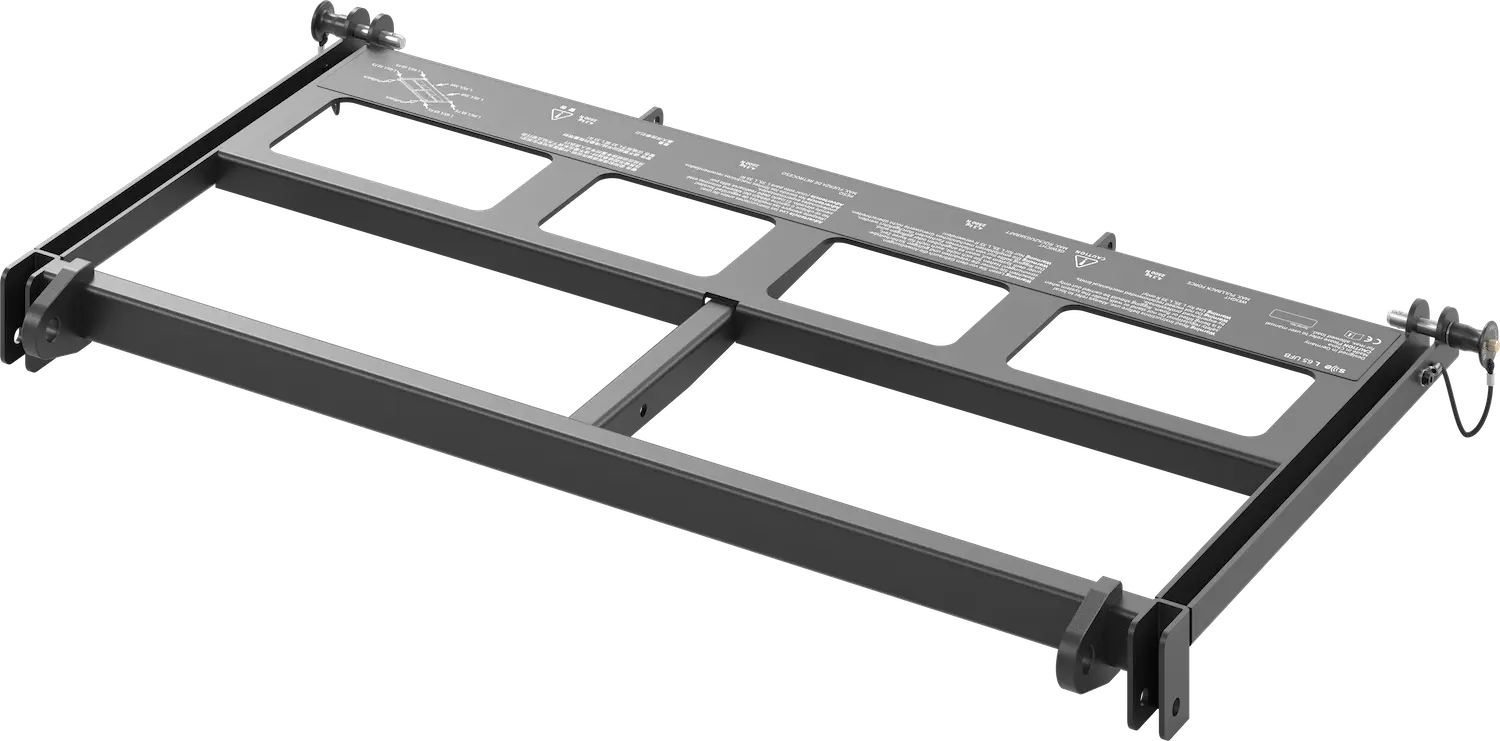

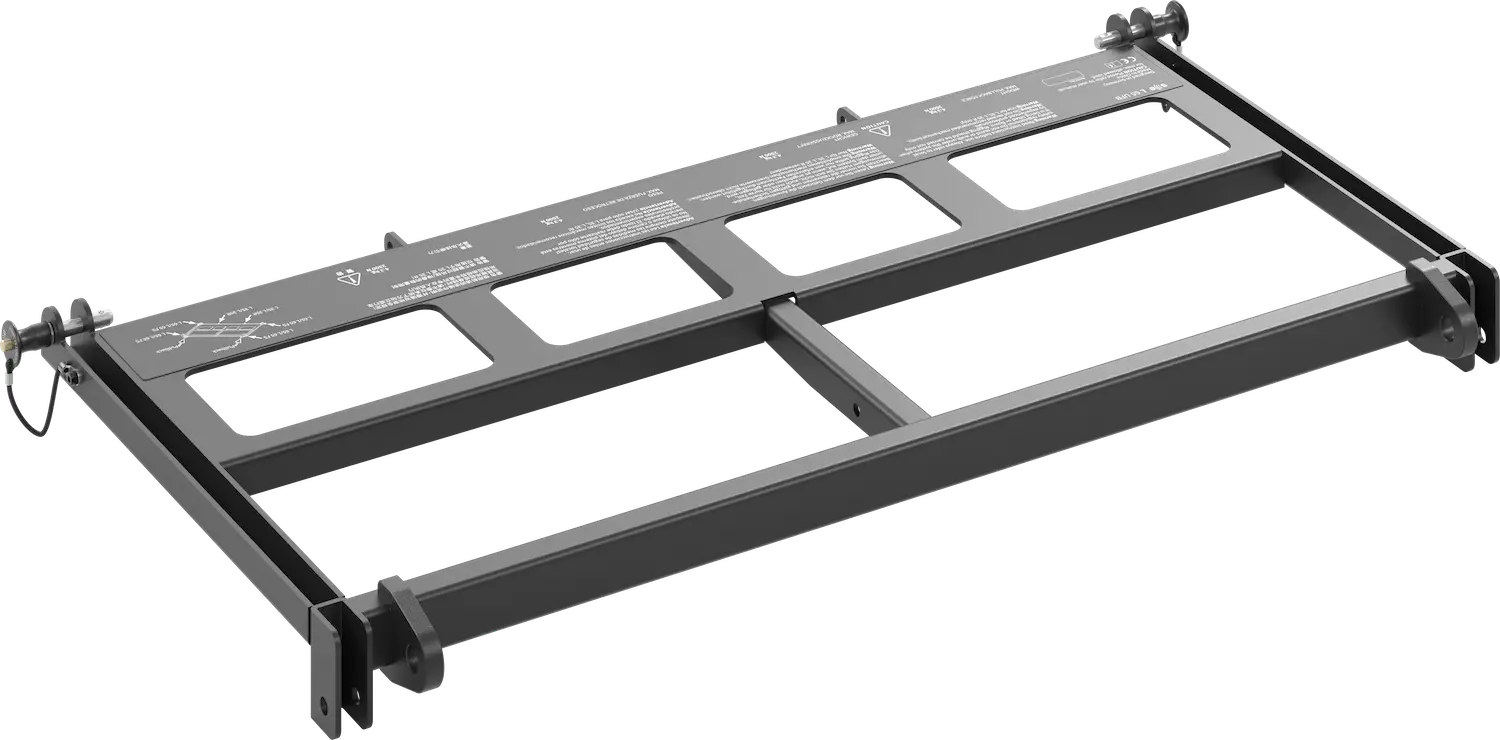

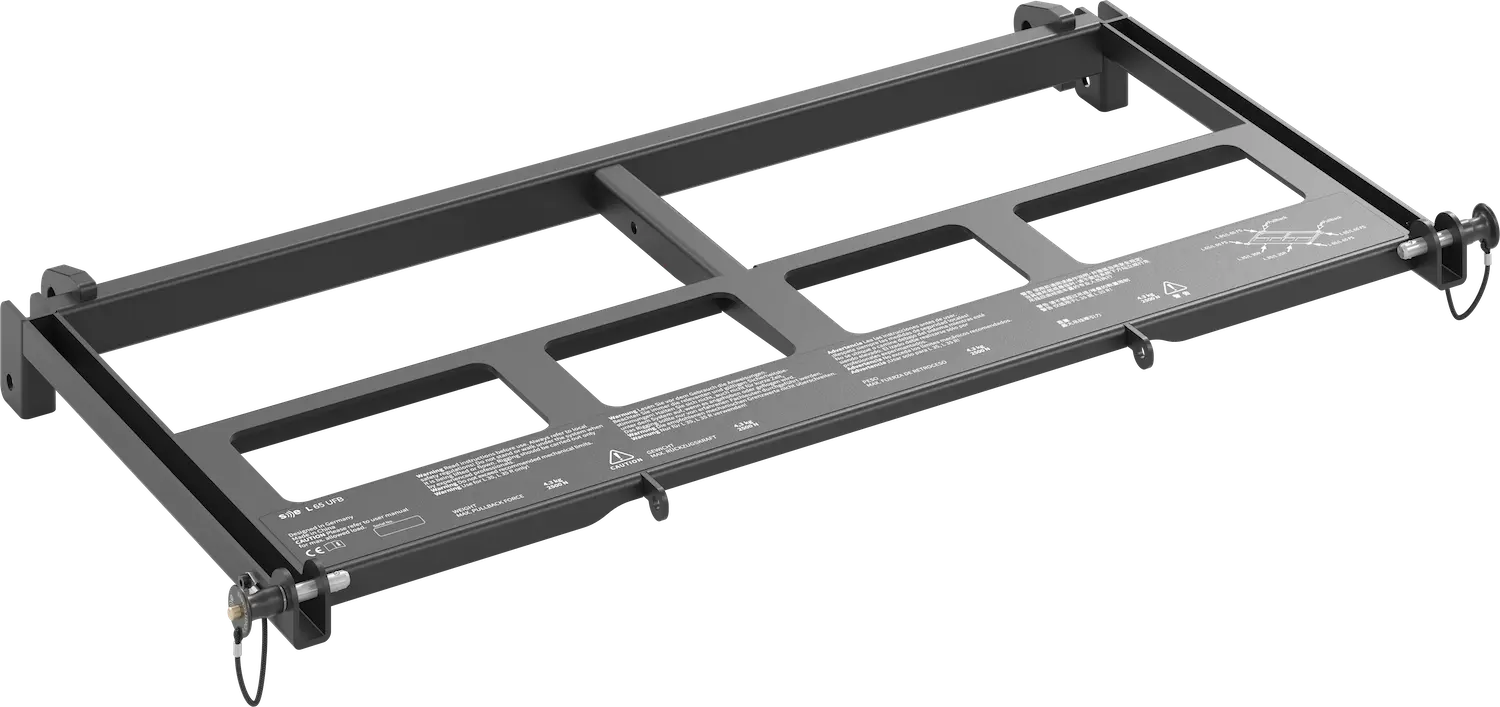

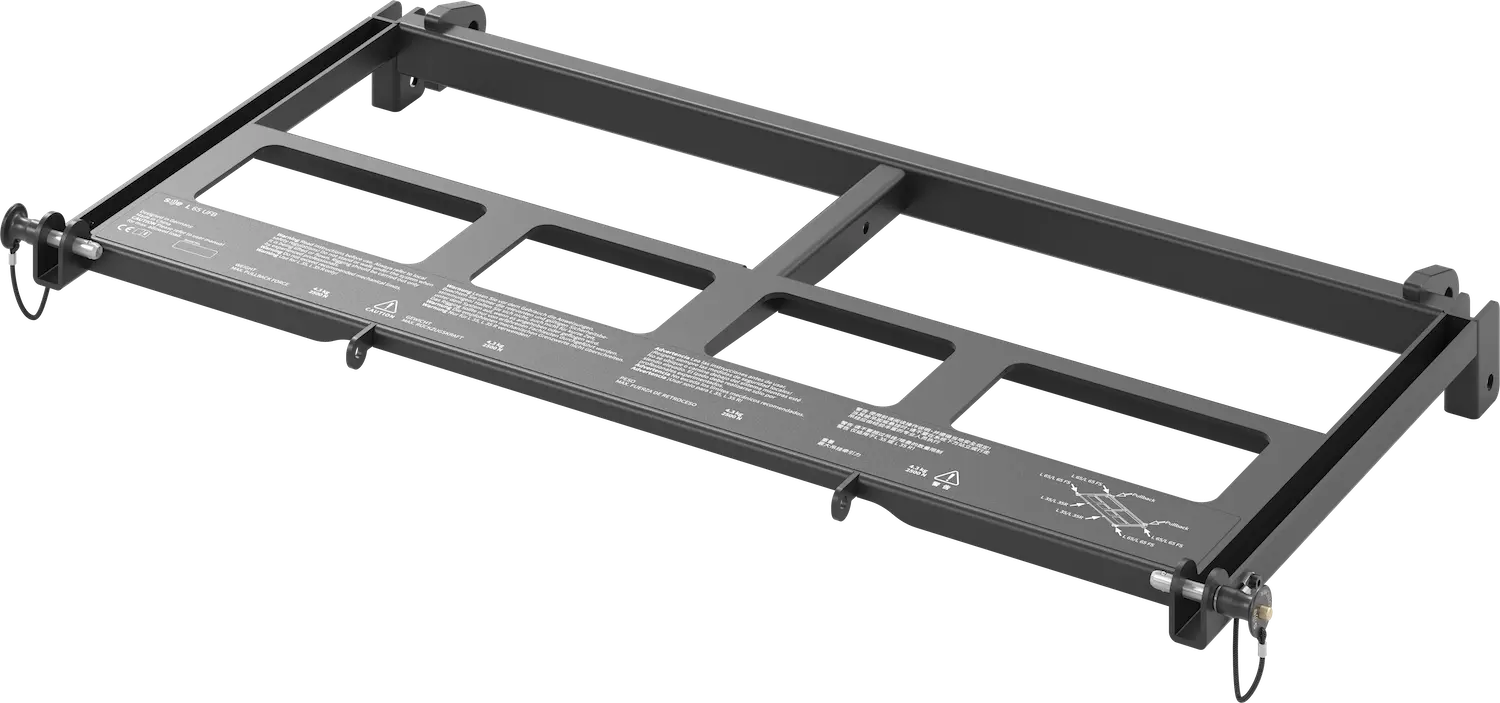

| Type | L 65 line array under-frame bar for L 35 downfill |
| MECHANICAL DATA | |
| Material | Carbon steel |
| Finishing | Matted surface with powder coating for outdoors |
| Max. load before deformation | 7 kN |
| WLL / load capacity (12:1) | 58 kg |
| WLL / load capacity (10:1) | 70 kg |
| WLL / load capacity (7:1) | 100 kg |
| Max. pullback force | 2500 N |
| Color | Black |
| Product dimensions [H x W x D] (incl. rigging) | 64.5 × 730 × 378 mm |
| Net weight | 4.3 kg |
| Packaging dimensions [H x W x D] | 100 × 759 × 385 mm |
| Total weight | 6.1 kg |
| Rigging | Four-point SE AUDIOTECHNIK rigging system with 8 mm SE AUDIOTECHNIK security pins Three 6 mm SE AUDIOTECHNIK security pins |
Related products and accessories
Packaging:
Cardboard outer packaging: 97.54% (990 g) | Foam inner padding: 0.00% (0 g) | Plastic protective sleeve: 2.46% (25 g)
The following overview contains information on the regulated substances used in the product and on compliance with the applicable limit values.
Lead (Pb): The content is not detectable or is below the applicable regulatory limits.
Mercury (Hg): The content is not detectable or is below the applicable regulatory limits.
Cadmium (Cd): The content is not detectable or is below the applicable regulatory limits.
Hexavalent Chromium (Cr(VI)): The content is not detectable or is below the applicable regulatory limits.
Polybrominated Biphenyls (PBB): The content is not detectable or is below the applicable regulatory limits.
Polybrominated Diphenyl Ethers (PBDE): The content is not detectable or is below the applicable regulatory limits.
Mercury (Hg): The content is not detectable or is below the applicable regulatory limits.
Cadmium (Cd): The content is not detectable or is below the applicable regulatory limits.
Hexavalent Chromium (Cr(VI)): The content is not detectable or is below the applicable regulatory limits.
Polybrominated Biphenyls (PBB): The content is not detectable or is below the applicable regulatory limits.
Polybrominated Diphenyl Ethers (PBDE): The content is not detectable or is below the applicable regulatory limits.
Environmental Protection Use Period: 15 year(s)
