Mi-Line
M-88AB
Available in:East Asia, South Asia, Southeast Asia
Technical details
| Model Name | M-88AB |
|---|---|
| Type | 2 × 8" active subwoofer (bandpass) |
| Frequency response (-6 dB) | 40 Hz – 120 Hz |
| Power handling (RMS) | 150 W (active) |
| Sensitivity (1 W / 1 m) | 92 dB |
| MAX SPL (1 m) | 115 dB |
| Impedance | 4 Ω |
| LF Transducer | 2 × 8" ferrite driver, 1" voice coil |
| Input / Output connectors | Input: XLR / 6.3 mm jack Output: XLR |
| Cabinet material / Coating | 15 mm MDF / Polyurea coating |

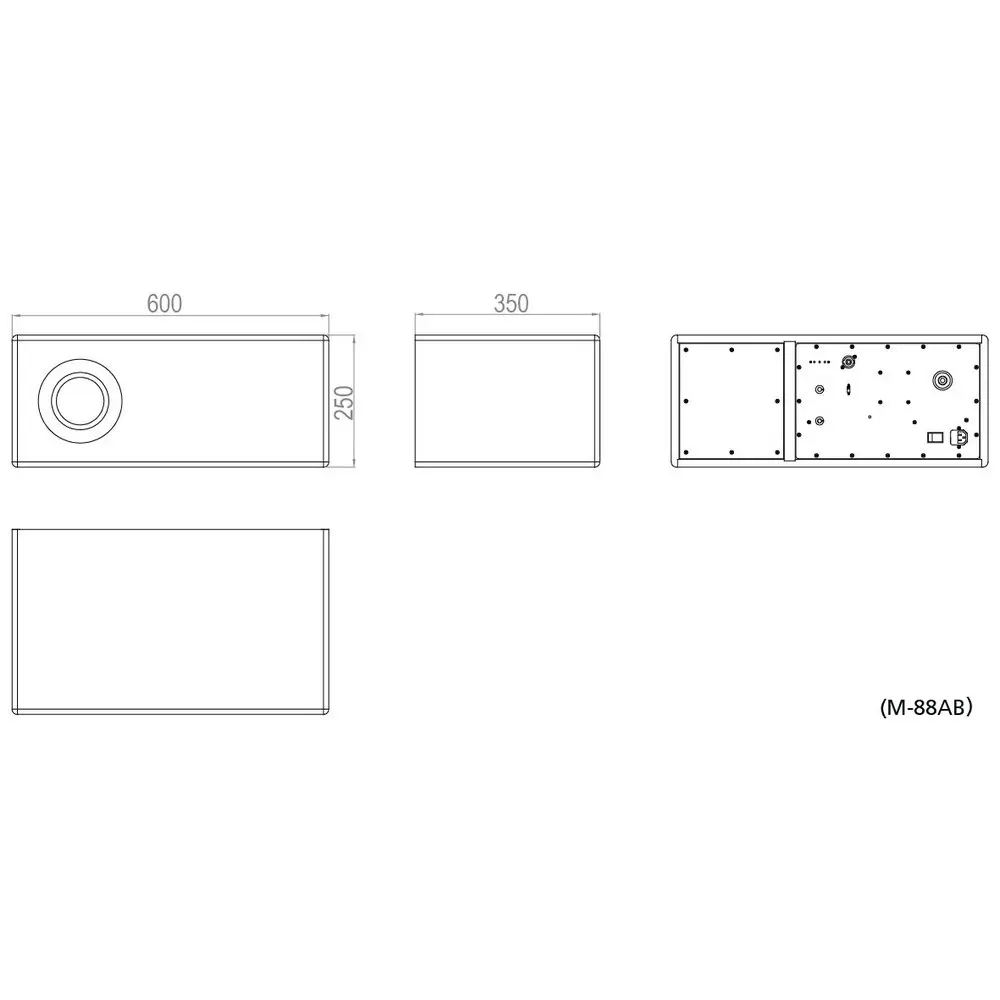

| Product dimensions (W x H x D) | 600 × 250 × 350 mm |
| Net weight | 15 kg |
Packaging:
Cardboard outer packaging: 70.33% (1470 g) | Foam inner padding: 26.79% (560 g) | Plastic protective sleeve: 2.87% (60 g)
The following overview contains information on the regulated substances used in the product and on compliance with the applicable limit values.
"Lead (Pb): Used in printed circuit boards (printed circuit board | electronic components on the PCB | internal connecting wires | copper traces) (permitted exemption).
"
"Lead (Pb): Used in connectors (electrical connectors) (permitted exemption). "
Mercury (Hg): The content is not detectable or is below the applicable regulatory limits.
Cadmium (Cd): The content is not detectable or is below the applicable regulatory limits.
Hexavalent Chromium (Cr(VI)): The content is not detectable or is below the applicable regulatory limits.
Polybrominated Biphenyls (PBB): The content is not detectable or is below the applicable regulatory limits.
Polybrominated Diphenyl Ethers (PBDE): The content is not detectable or is below the applicable regulatory limits.
"Lead (Pb): Used in connectors (electrical connectors) (permitted exemption). "
Mercury (Hg): The content is not detectable or is below the applicable regulatory limits.
Cadmium (Cd): The content is not detectable or is below the applicable regulatory limits.
Hexavalent Chromium (Cr(VI)): The content is not detectable or is below the applicable regulatory limits.
Polybrominated Biphenyls (PBB): The content is not detectable or is below the applicable regulatory limits.
Polybrominated Diphenyl Ethers (PBDE): The content is not detectable or is below the applicable regulatory limits.
Environmental Protection Use Period: 15 year(s)
