C-Line

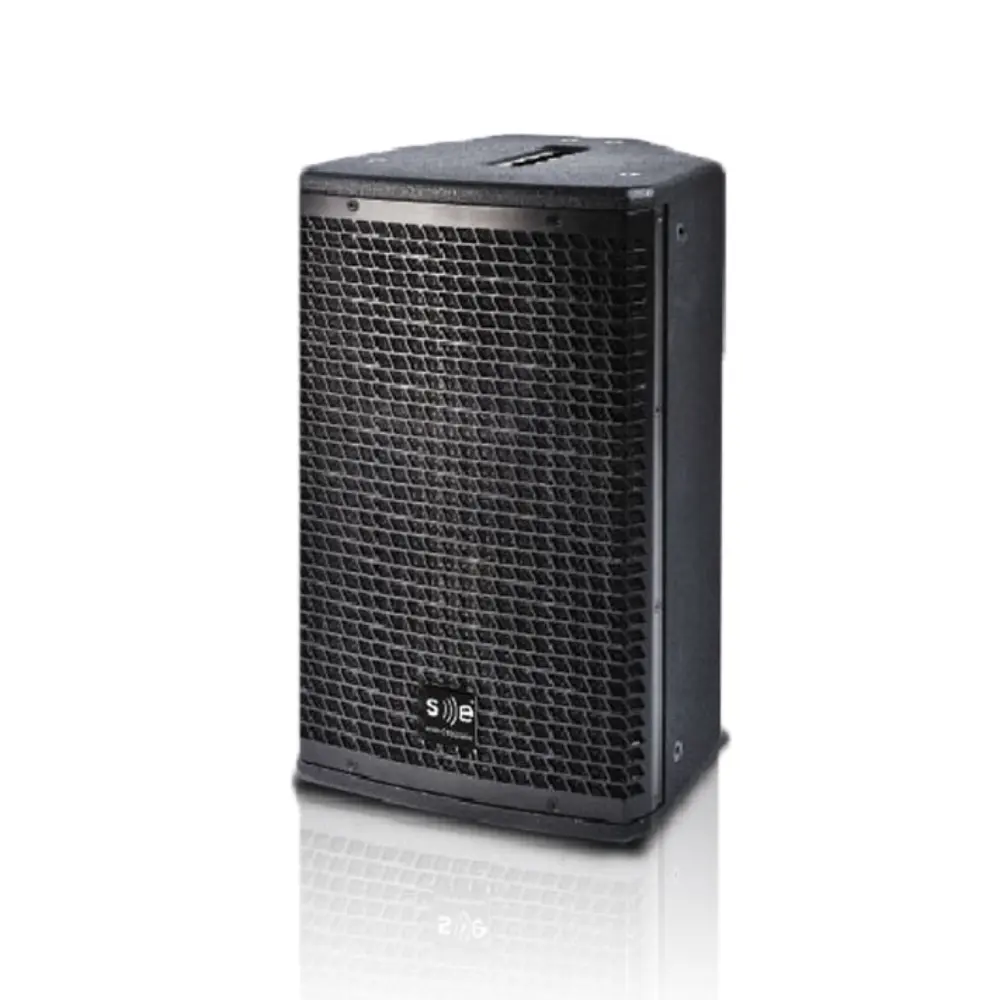

C-10
Available in: China
Technical details
| Model Name | C-10 |
|---|---|
| Type | 10" two way passive full range loudspeaker |
| Frequency response (-6 dB) | 60 Hz – 19 kHz |
| Power handling (RMS / Peak) (AES) | 250 W / 1000 W |
| Sensitivity (1 W / 1 m) | 95 dB |
| MAX SPL (1 m) | 125 dB |
| Impedance | 8 Ω |
| Dispersion (H x V) | 90° x 60°, HF-Horn rotatable |
| LF Transducer | 10", ferrite magnet, 2.5" voice coil |
| HF Transducer | 1", ferrite, PEN film compression unit, 1.75" voice coil |
| Protection | Tweeter protection |
| Input interface | 2x Neutrik NL-4: pins +1/-1 input/THRU, pins +2/-2 N.C. |
| Rigging system | 14x MS rigging points, 1 x 5 cargo tracks |
| Cabinet material / Coating | 15 mm selected plywood / Polyurea coating |

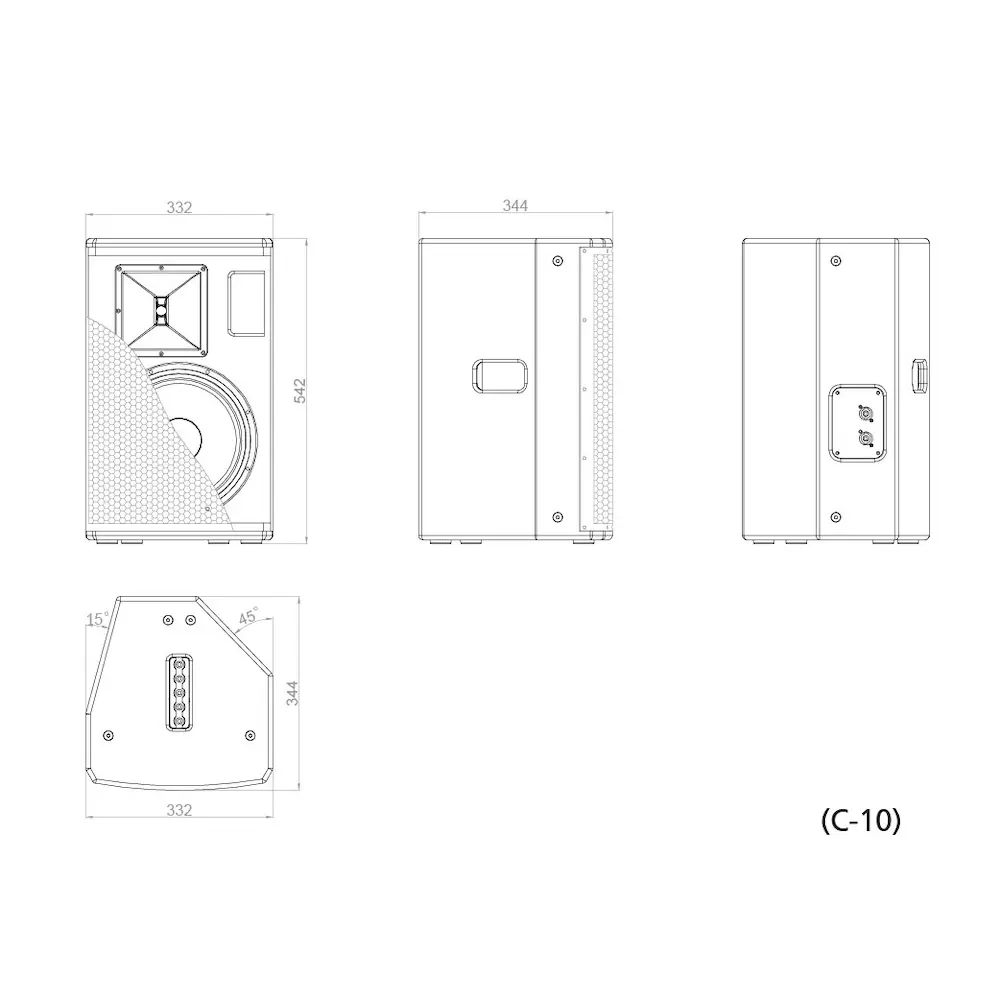

| Product dimensions (W x H x D) | 332 x 542 x 344 mm |
| Net weight | 15.5 kg |
Packaging:
Cardboard outer packaging: 87.40% (1665 g) | Foam inner padding: 9.97% (190 g) | Plastic protective sleeve: 2.62% (50 g)
The following overview contains information on the regulated substances used in the product and on compliance with the applicable limit values.
"Lead (Pb): Used in printed circuit boards (printed circuit board | electronic components on the PCB | internal connecting wires | copper traces) (permitted exemption).
"
"Lead (Pb): Used in connectors (electrical connectors) (permitted exemption). "
Mercury (Hg): The content is not detectable or is below the applicable regulatory limits.
Cadmium (Cd): The content is not detectable or is below the applicable regulatory limits.
Hexavalent Chromium (Cr(VI)): The content is not detectable or is below the applicable regulatory limits.
Polybrominated Biphenyls (PBB): The content is not detectable or is below the applicable regulatory limits.
Polybrominated Diphenyl Ethers (PBDE): The content is not detectable or is below the applicable regulatory limits.
"Lead (Pb): Used in connectors (electrical connectors) (permitted exemption). "
Mercury (Hg): The content is not detectable or is below the applicable regulatory limits.
Cadmium (Cd): The content is not detectable or is below the applicable regulatory limits.
Hexavalent Chromium (Cr(VI)): The content is not detectable or is below the applicable regulatory limits.
Polybrominated Biphenyls (PBB): The content is not detectable or is below the applicable regulatory limits.
Polybrominated Diphenyl Ethers (PBDE): The content is not detectable or is below the applicable regulatory limits.
Environmental Protection Use Period: 15 year(s)
