L-Line

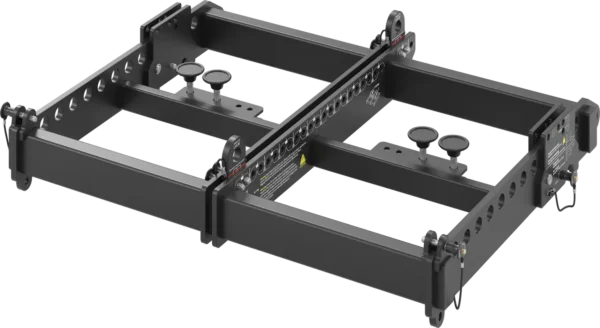

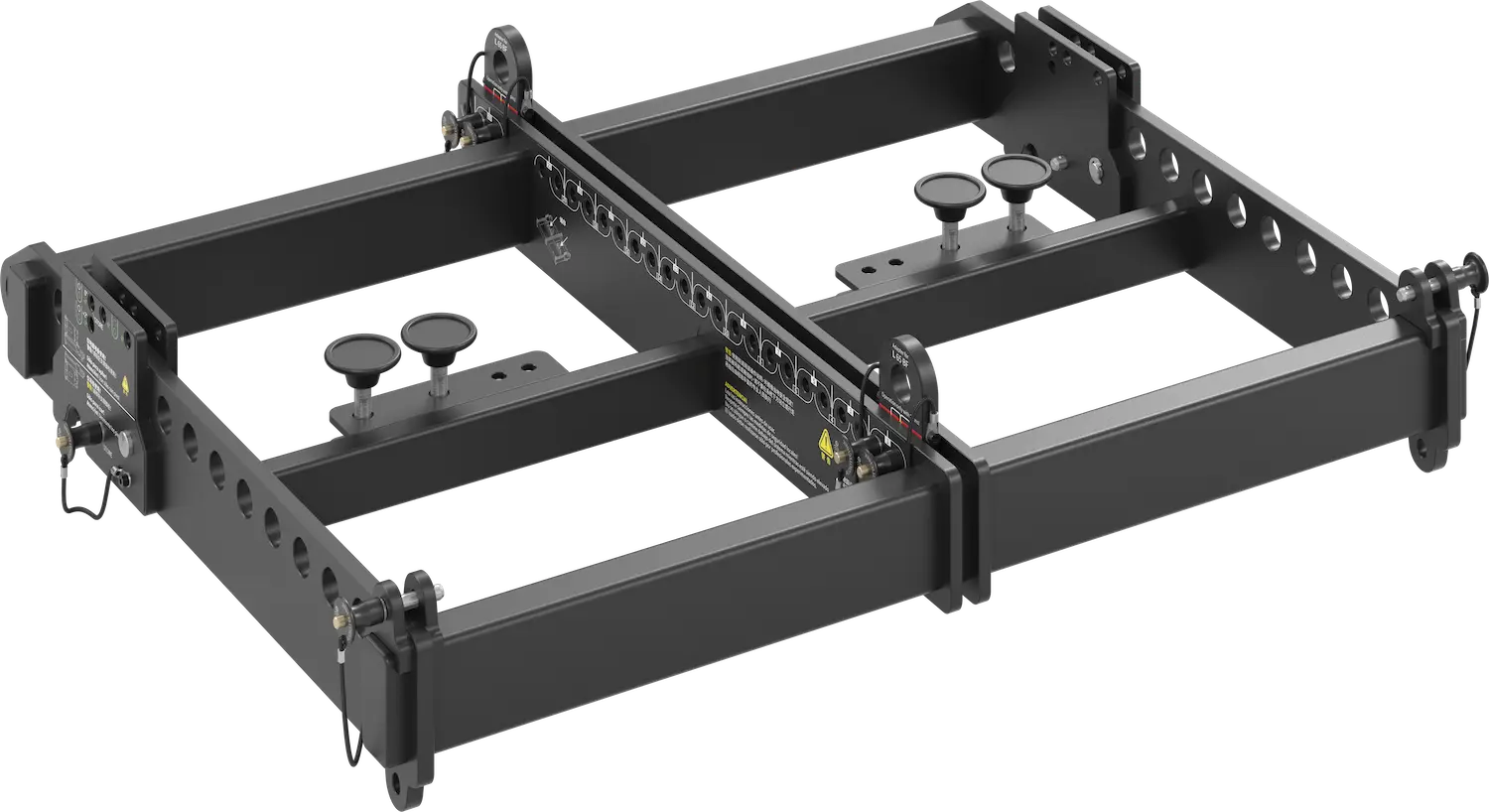

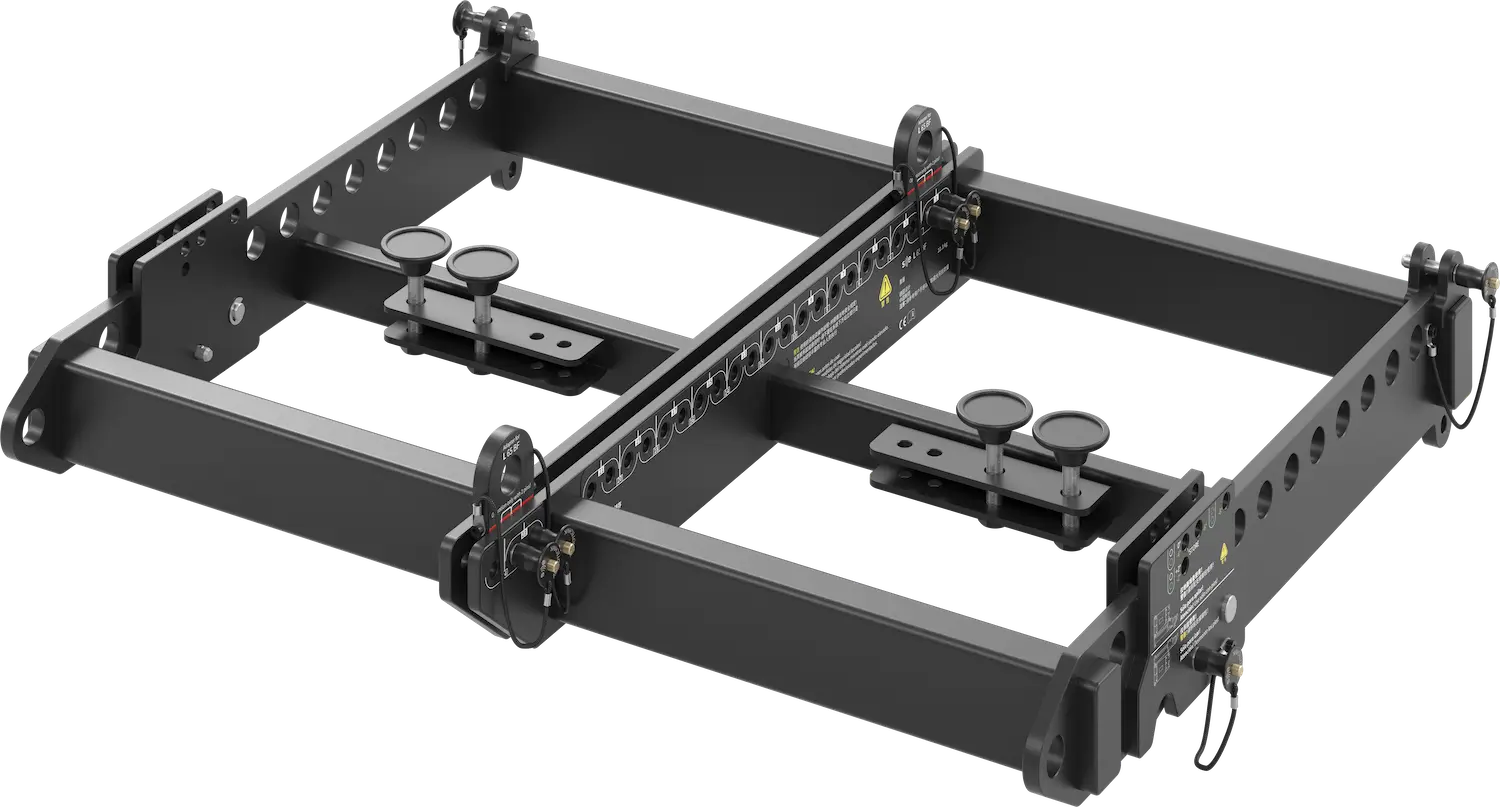

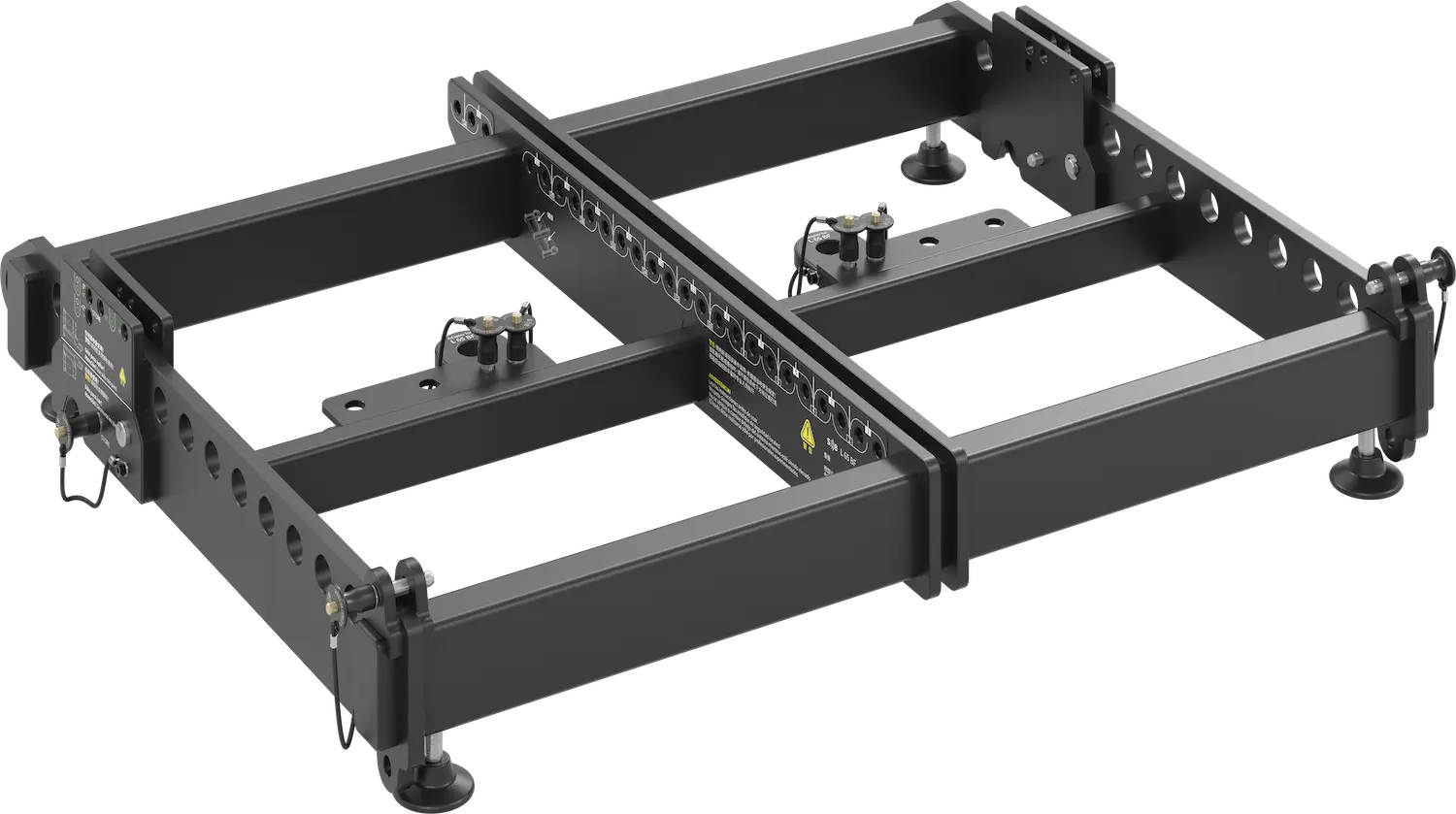

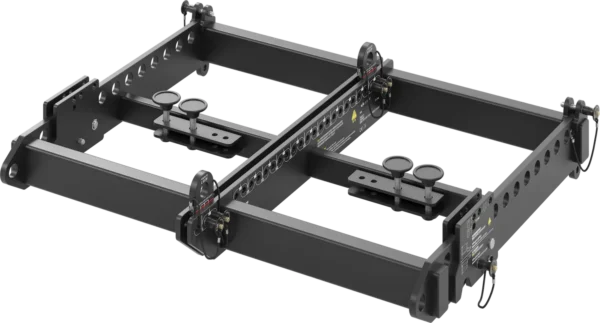

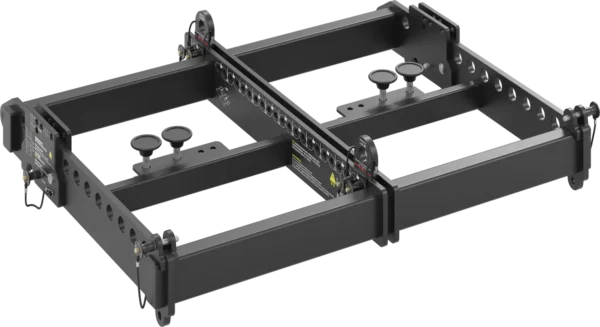

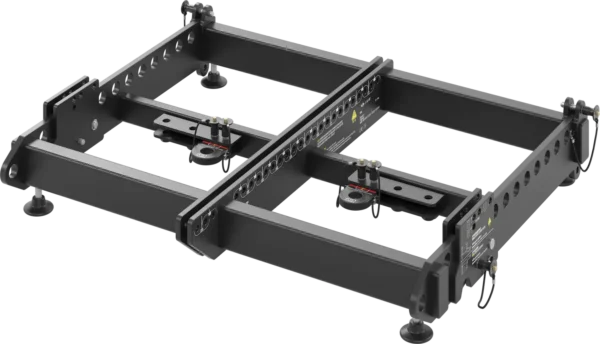

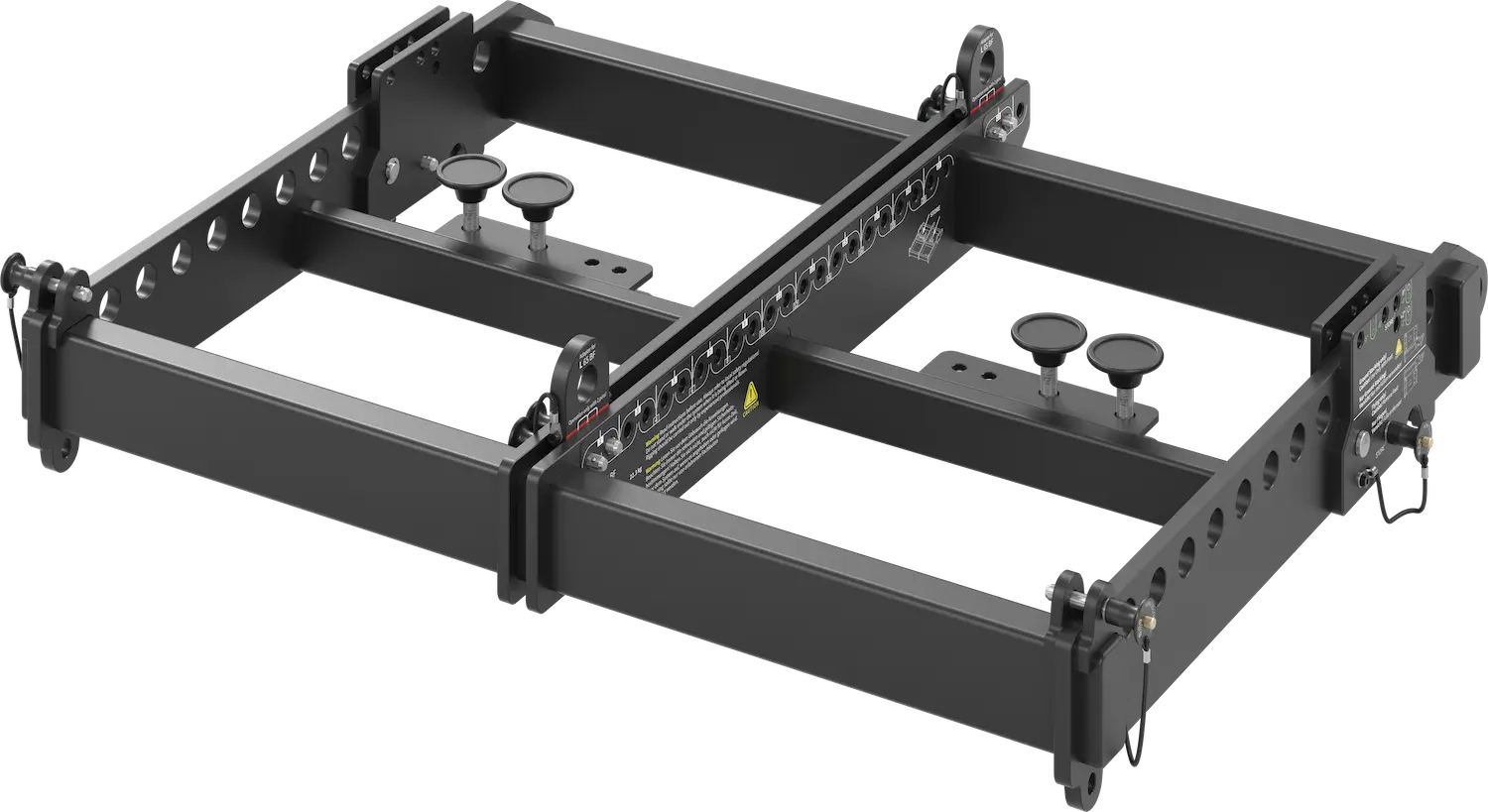

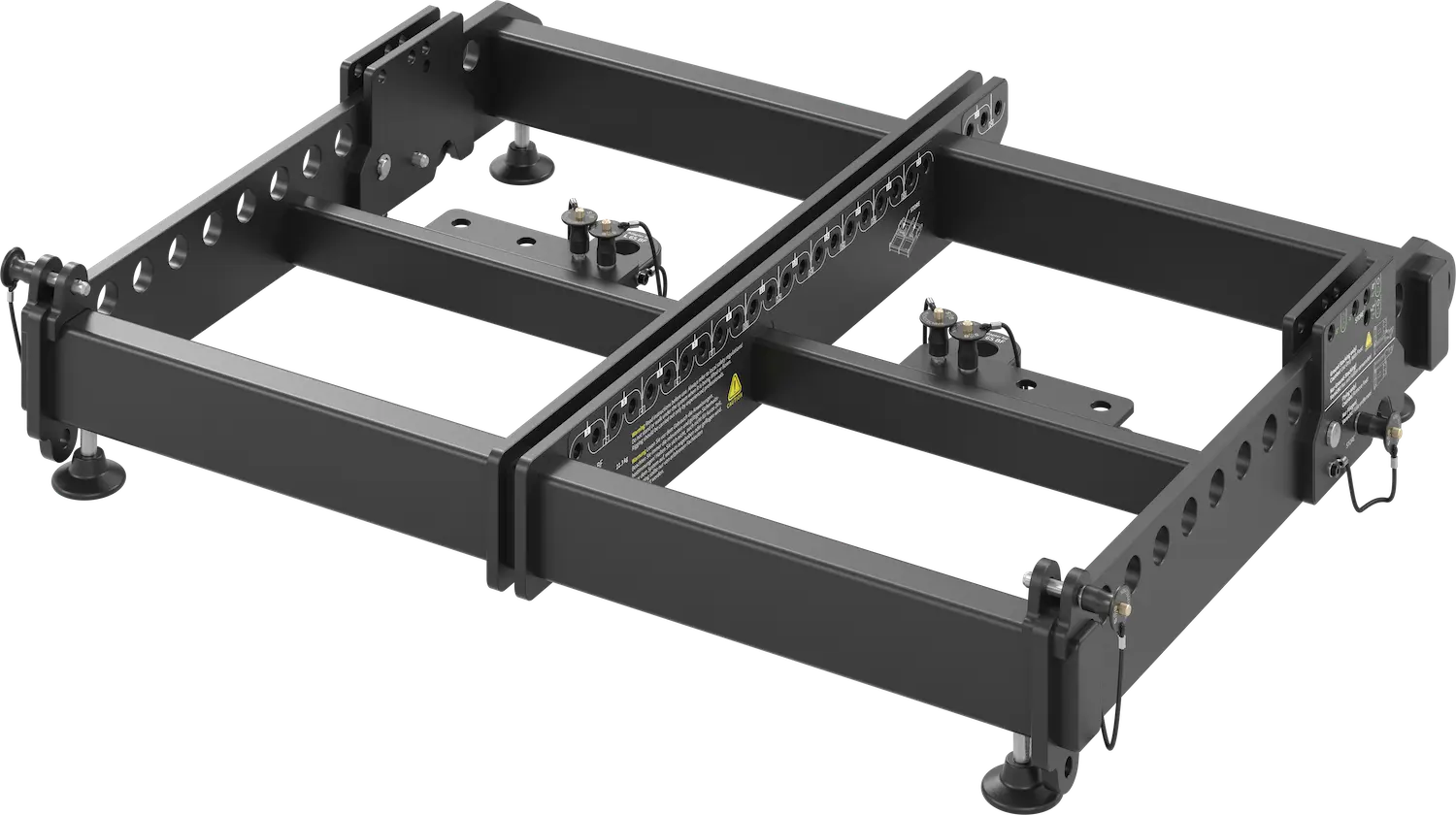

L 65 BF
Available in:Africa, Australasia, Caribbean, Central America, East Asia, EU, Europe, Middle East, North America, Oceania, South America, South Asia, Southeast Asia
Technical details
| Model Name | L 65 BF |
|---|---|
| Type | L 65 line array bumper frame |
| MECHANICAL DATA | |
| Material | Carbon steel |
| Finishing | Matted surface with powder coating for outdoors |
| Max. load before deformation | 50 kN |
| WLL / load capacity (12:1) | 410 kg |
| WLL / load capacity (10:1) | 495 kg |
| WLL / load capacity (7:1) | 705 kg |
| Max. pullback force | n/a |
| Color | Black |
| Product dimensions [H x W x D] (incl. rigging) | 113 × 765 × 590 mm |
| Net weight | 19.7 kg |
| Packaging dimensions [H x W x D] | 193 × 790 × 610 mm |
| Total weight | 22 kg |
| Rigging | Four-point SE AUDIOTECHNIK rigging system with 8 mm SE AUDIOTECHNIK security pins 24x two-pins pick points with 1/2" holes One two-pins to shackle adapter 4x steel feet for stacking frame |
Related products and accessories
Packaging:
Cardboard outer packaging: 99.28% (4850 g) | Foam inner padding: 0.00% (0 g) | Plastic protective sleeve: 0.72% (35 g)
The following overview contains information on the regulated substances used in the product and on compliance with the applicable limit values.
Lead (Pb): The content is not detectable or is below the applicable regulatory limits.
Mercury (Hg): The content is not detectable or is below the applicable regulatory limits.
Cadmium (Cd): The content is not detectable or is below the applicable regulatory limits.
Hexavalent Chromium (Cr(VI)): The content is not detectable or is below the applicable regulatory limits.
Polybrominated Biphenyls (PBB): The content is not detectable or is below the applicable regulatory limits.
Polybrominated Diphenyl Ethers (PBDE): The content is not detectable or is below the applicable regulatory limits.
Mercury (Hg): The content is not detectable or is below the applicable regulatory limits.
Cadmium (Cd): The content is not detectable or is below the applicable regulatory limits.
Hexavalent Chromium (Cr(VI)): The content is not detectable or is below the applicable regulatory limits.
Polybrominated Biphenyls (PBB): The content is not detectable or is below the applicable regulatory limits.
Polybrominated Diphenyl Ethers (PBDE): The content is not detectable or is below the applicable regulatory limits.
Environmental Protection Use Period: 15 year(s)
