M-Array

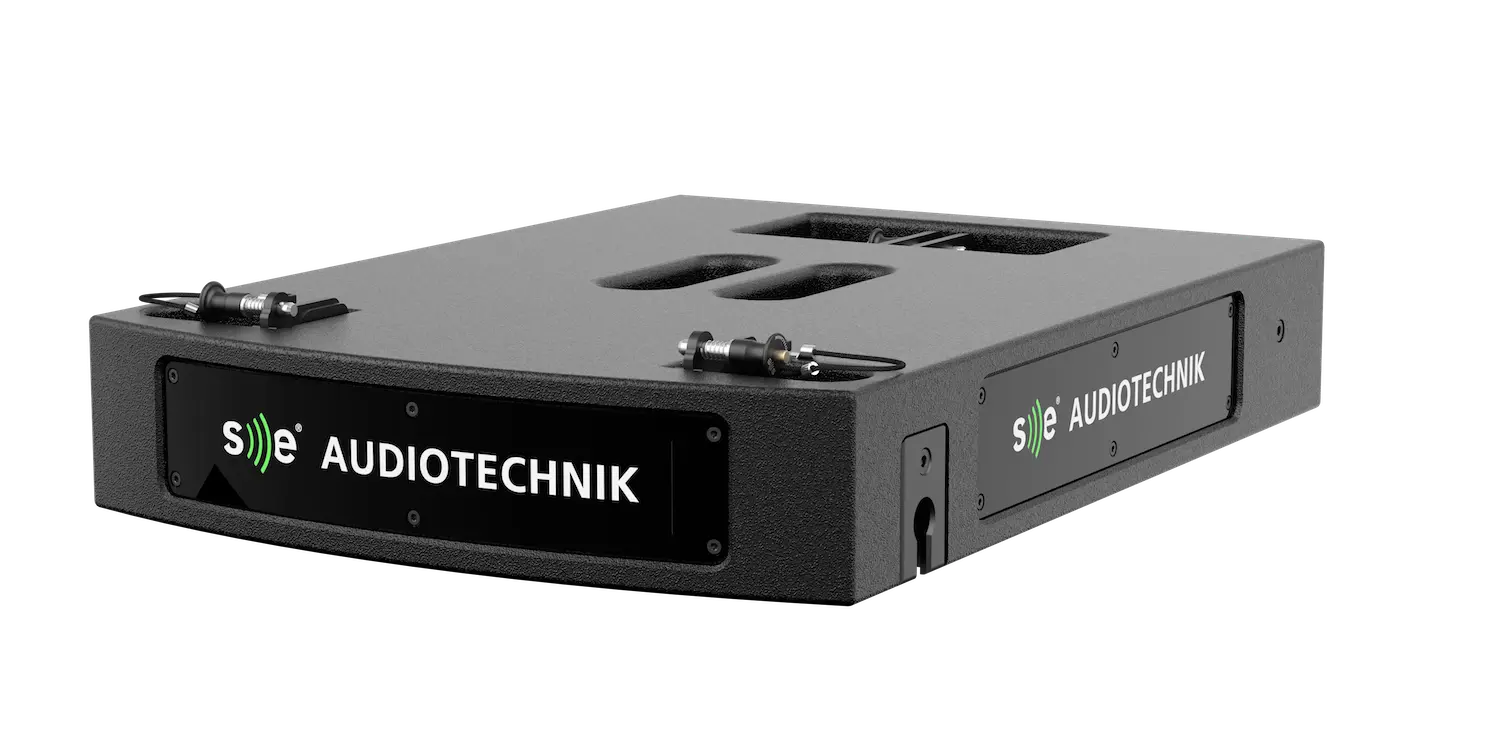

M-F3A S12 PRO SFi
Available in:Africa, Australasia, Caribbean, Central America, East Asia, EU, Europe, Middle East, North America, Oceania, South America, South Asia, Southeast Asia
Technical details
| Model Name | M-F3A S12 PRO SFi |
|---|---|
| Type | Stacking Frame for M-F3A PRO and S12 PRO Subwoofer |
| MECHANICAL DATA | |
| Material | 9 and 12 mm plywood |
| Finishing | Black or white polyurea coating |
| Product dimensions [H x W x D] (incl. rigging) | 97.5 × 355 × 495 mm |
| Net weight | 6.3 kg |
| Packaging dimensions [H x W x D] | 163 × 417 × 555 mm |
| Total weight | 8.5 kg |
| Hardware | Two side handles embedded in cabinet Four rubber feet and top slots for stacking Front SE Audiotechnik® backlighting panel |
| Rigging | Two-point SE Audiotechnik® stacking system Three-point rigging system with 6 mm SE Audiotechnik® locking pins |
| Aiming angles | 0º, -2.5º, -5º |
| ELECTRICAL DATA | |

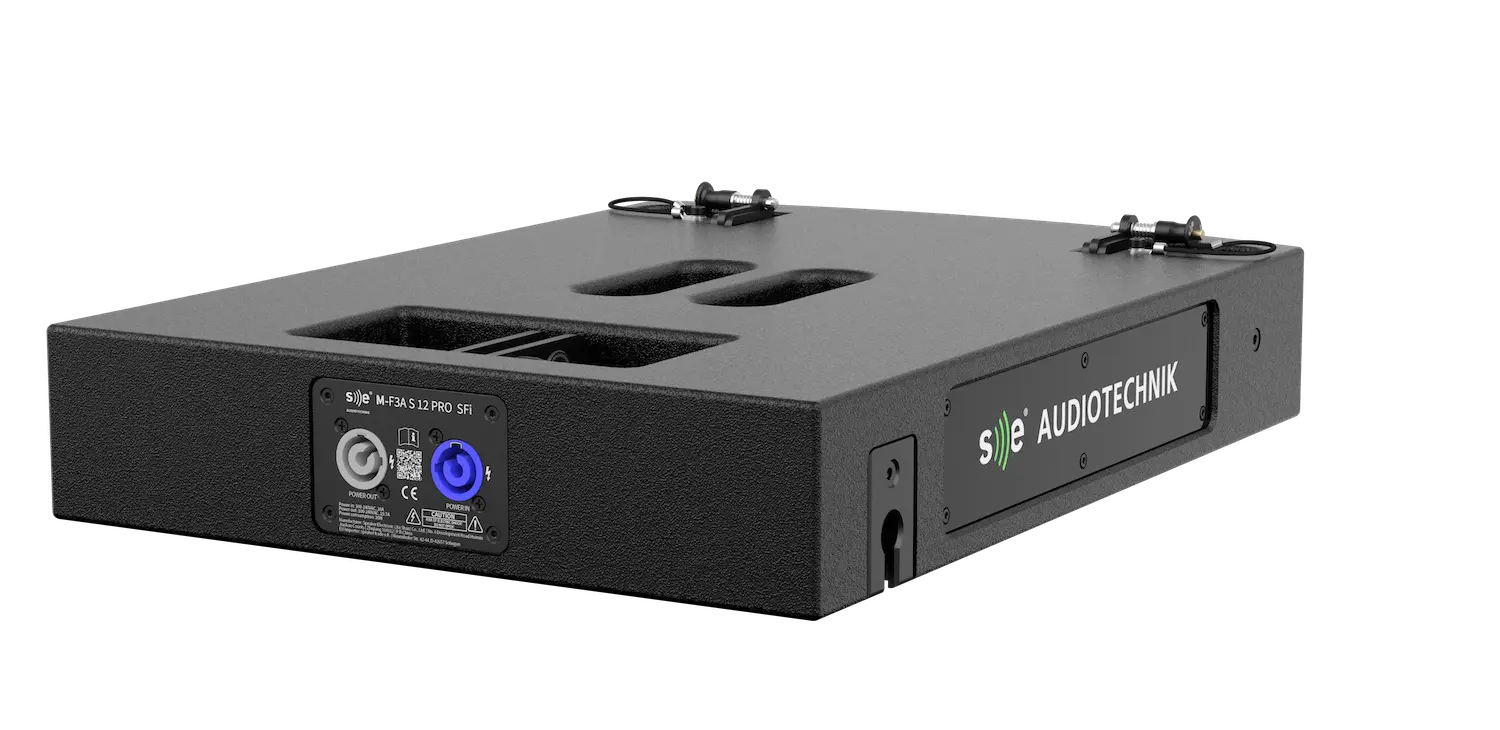

| Connectors | Power input: powerCON® 20 A Power link output: powerCON® 20 A |
| Wiring | Pin N: Neutral Pin L: Conductor Pin E: Ground |
| AC supply operating range | 100 – 240 VAC 50/60 Hz, 20 A |
| Power consumption | 30 W |
Packaging:
Cardboard outer packaging: 83.04% (1200 g) | Foam inner padding: 14.53% (210 g) | Plastic protective sleeve: 2.42% (35 g)
The following overview contains information on the regulated substances used in the product and on compliance with the applicable limit values.
"Lead (Pb): Used in printed circuit boards (printed circuit board | electronic components on the PCB | internal connecting wires | copper traces) (permitted exemption).
"
"Lead (Pb): Used in connectors (electrical connectors) (permitted exemption). "
Mercury (Hg): The content is not detectable or is below the applicable regulatory limits.
Cadmium (Cd): The content is not detectable or is below the applicable regulatory limits.
Hexavalent Chromium (Cr(VI)): The content is not detectable or is below the applicable regulatory limits.
Polybrominated Biphenyls (PBB): The content is not detectable or is below the applicable regulatory limits.
Polybrominated Diphenyl Ethers (PBDE): The content is not detectable or is below the applicable regulatory limits.
"Lead (Pb): Used in connectors (electrical connectors) (permitted exemption). "
Mercury (Hg): The content is not detectable or is below the applicable regulatory limits.
Cadmium (Cd): The content is not detectable or is below the applicable regulatory limits.
Hexavalent Chromium (Cr(VI)): The content is not detectable or is below the applicable regulatory limits.
Polybrominated Biphenyls (PBB): The content is not detectable or is below the applicable regulatory limits.
Polybrominated Diphenyl Ethers (PBDE): The content is not detectable or is below the applicable regulatory limits.
Environmental Protection Use Period: 15 year(s)
