L-Line

L 35

Big sound in small spaces

L 35 line arrays can also be installed in rooms with low ceilings and deliver a first-class audio experience. The L 35 is powerful—especially considering its lightweight design: this 2-way loudspeaker weighs less than 4 kg and is as compact as a shoebox. At the same time, a single loudspeaker system achieves an impressive 123 dB max. SPL. The L 35 is designed to offer a discreet, minimalist appearance. Clever cabling makes setup flexible and easy to handle. The integrated three-point rigging system ensures safe and convenient mounting, stacking, and flying.

Loading availability...

Available in: Africa, Australasia, Caribbean, Central America, East Asia, EU, Europe, Middle East, North America, Oceania, South America, South Asia, Southeast Asia

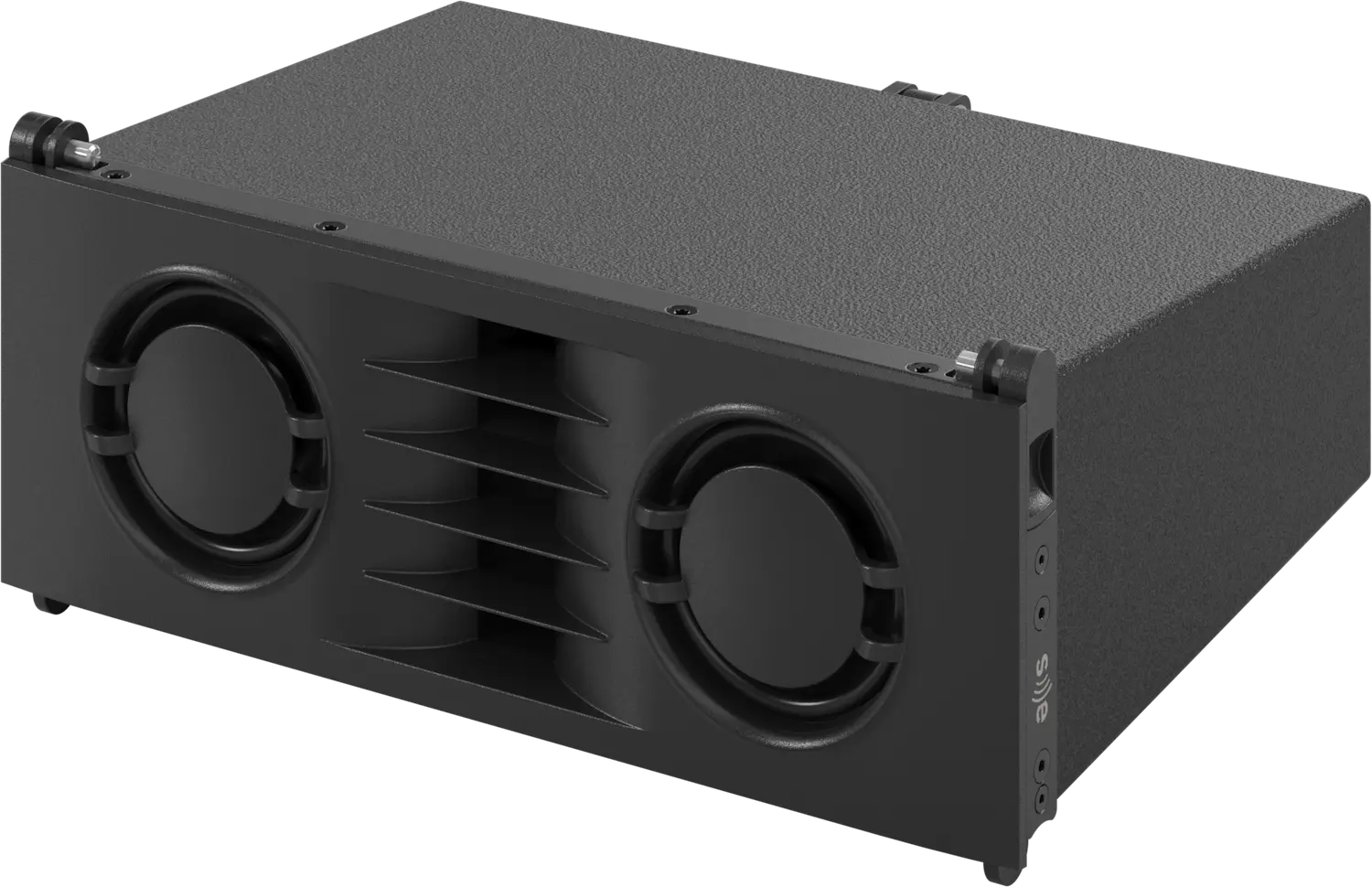

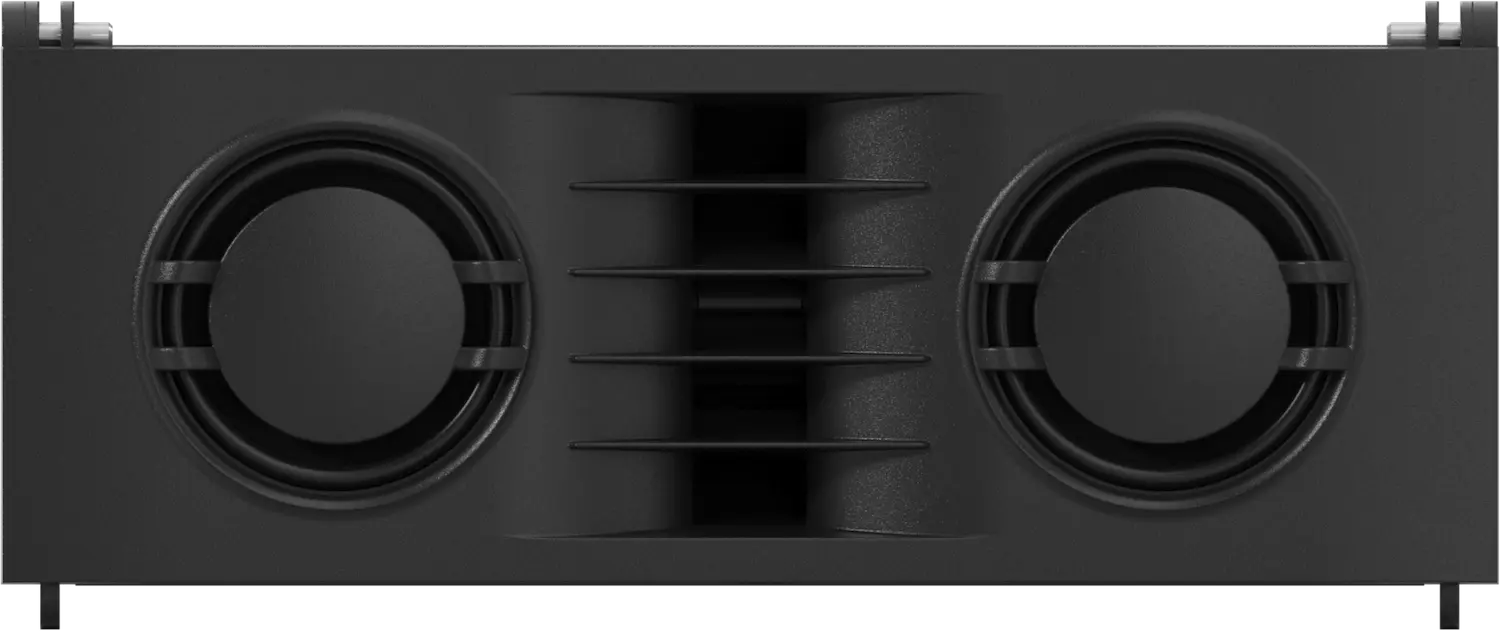

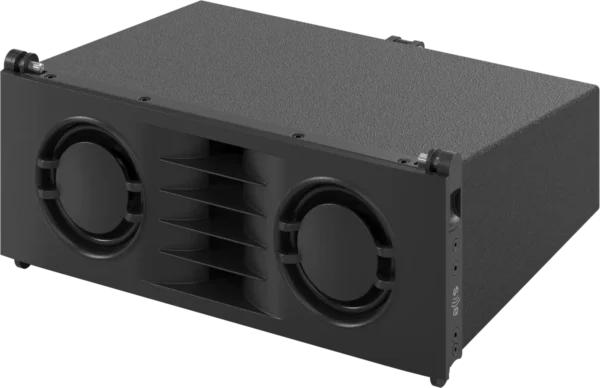

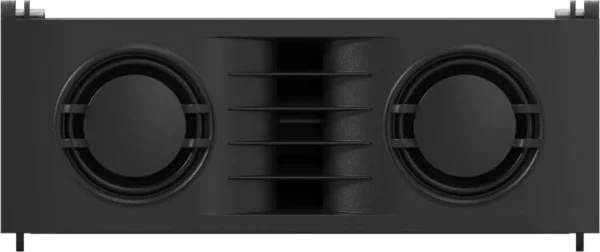

Outstanding performance: Ultra-compact line array with a robust die-cast aluminium front plate. Equipped with two powerful 3.5″ neodymium drivers and a 1″ compression driver, a single L 35 achieves up to 123 dB sound pressure level with excellent sound quality.

Quick setup and lightweight: Save valuable time! The integrated three-point rigging system enables fast assembly of stacks and line arrays with minimal effort. Weighing just 3.6 kg, you’ll rarely have to worry about structural load again. In most cases, the L 35 line array will touch the floor long before it ever becomes too heavy for the rigging points.

Versatile and flexible: The L 35 line array enclosure is available with a black or white polyurea coating. For typical weather conditions, the R version is the ideal choice for outdoor use. With the extensive range of accessories, you have maximum flexibility to always configure the most suitable system.

Product inquiry

The L 35 always delivers more than enough power: in relation to its weight, it achieves an impressive 34 dB/kg. Thanks to its compact size and discreet appearance, the L 35 is particularly well-suited for both fixed installations and mobile applications. The compact design also allows for a wide range of tilt angles.
Very few others offer comparable performance in such a small footprint. With its numerous mounting options and extensive range of accessories, the L 35 can be deployed almost anywhere in no time at all.

Technical details

TECHNICAL INFORMATION
Model Name	L 35
Type	2-way passive line array loudspeaker
ACOUSTICAL DATA
Frequency range (-3 dB)*	110 Hz – 18 kHz
Frequency range (-6 dB)*
Frequency range (-10 dB)*	95 Hz – 19 kHz
Coverage angles (-6 dB) [H x V]	100° × 20°
Nominal impedance	16 Ω
Sensitivity*	91 dB
Peak power	400 W
Continuous power**	100 W
Maximum Peak SPL***	123 dB
System type	2-way passive system
Crossover frequency	2.2 kHz
Transducers	LF: 2 × 3.5" drivers (1" voice coil) MHF: 1" compression driver (1.4" voice coil)
Enclosure type	Vented box

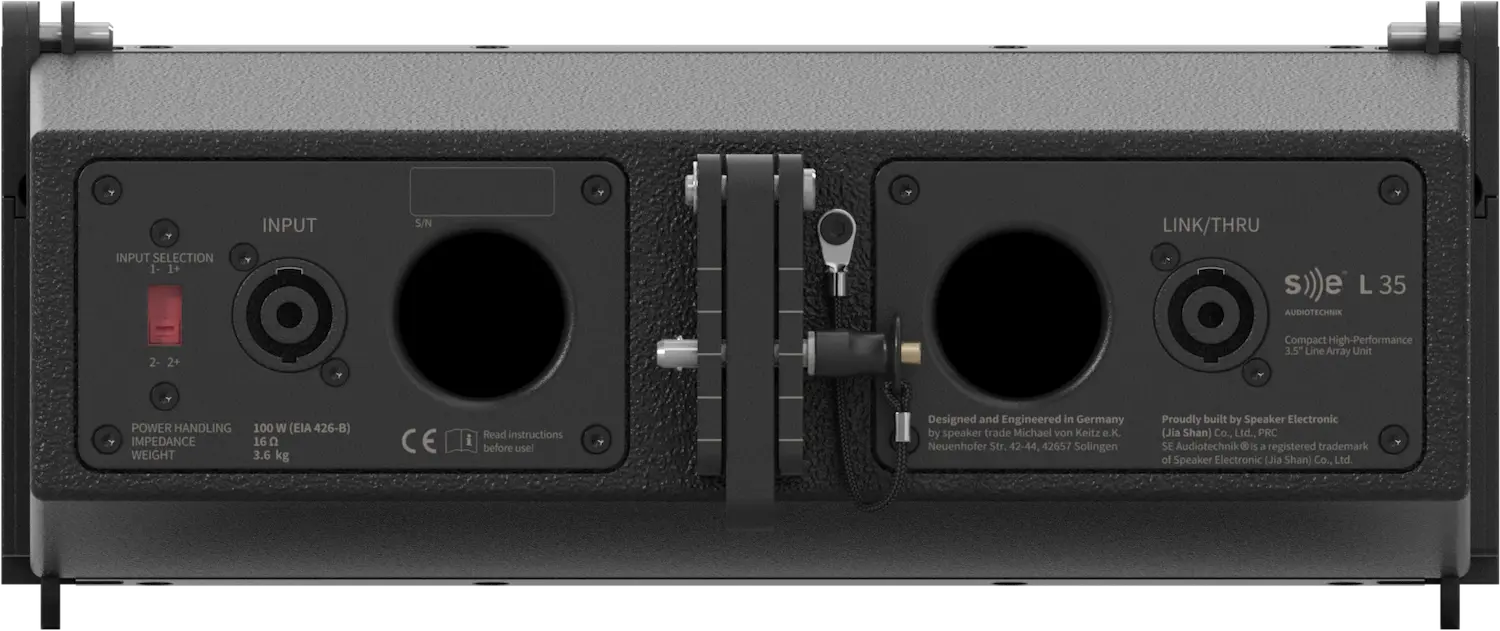

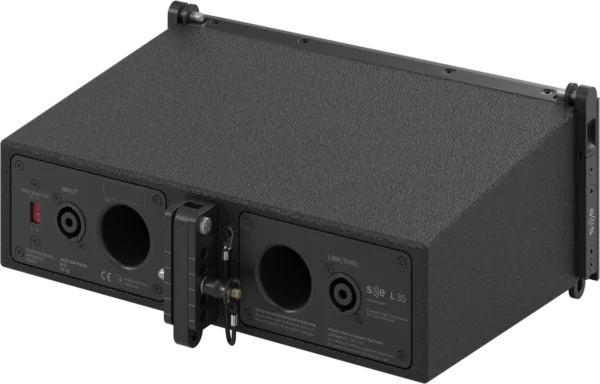

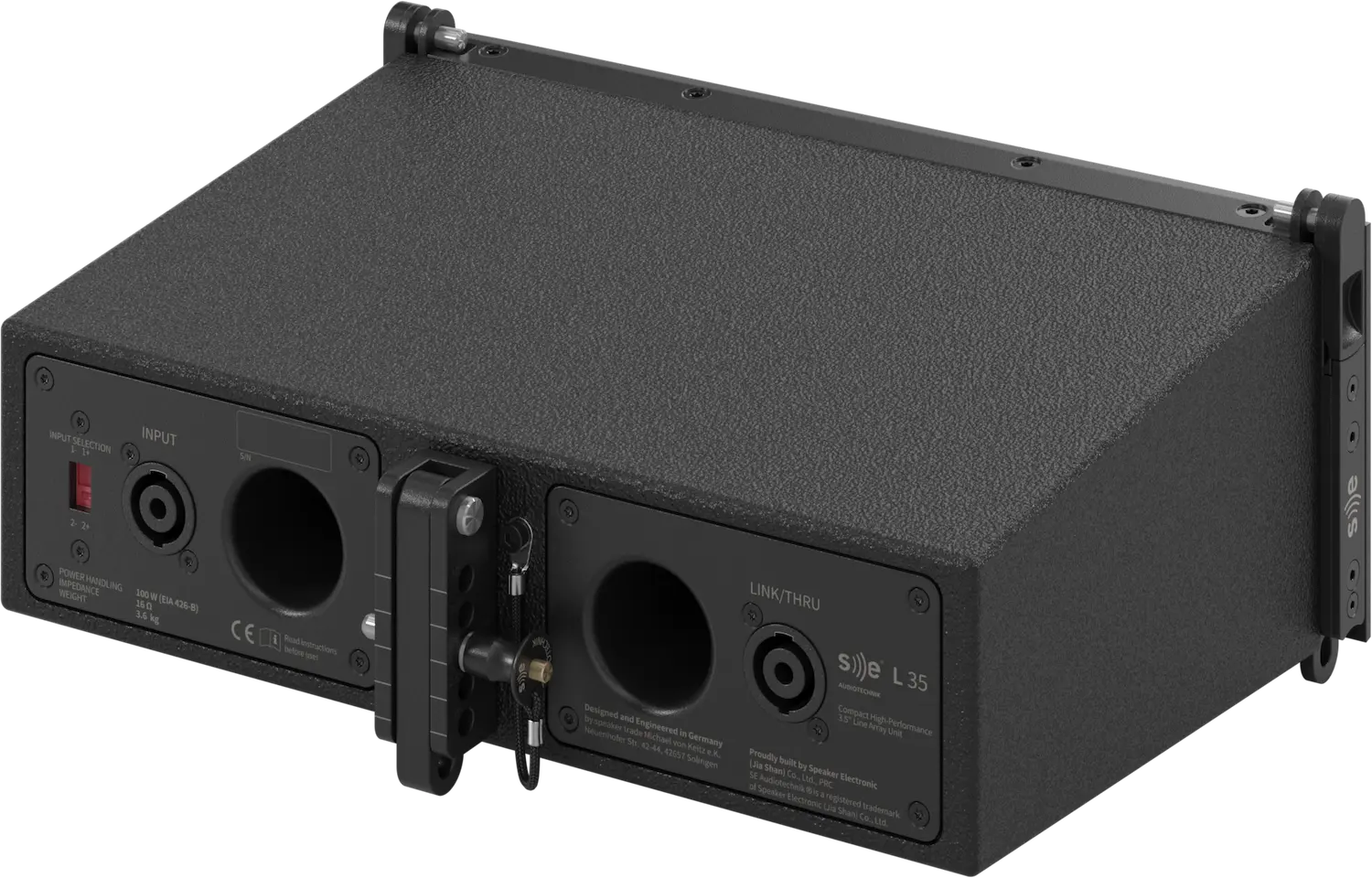

Connectors	Input signal: 1 × Neutrik speakON® NL4 Link output: 1 × Neutrik speakON® NL4
Wiring	Input signal: switchable 1+/1- or 2+/2- Link output: 1+/1- and 2+/2-
MECHANICAL DATA
Product dimensions [H x W x D] (incl. rigging)	131 × 312 × 234 mm
Weight	3.6 kg
Packaging dimensions [H x W x D]	225 × 415 × 311 mm
Total weight	4.7 kg
Cabinet	12 mm plywood and die-cast aluminium front panel
Cabinet finishing	Black or white polyurea coating
Grille	Powder coated perforated steel
Hardware	–
Rigging	Three-point rigging system: two front and one rear 6 mm SE Audiotechnik® locking pins.
Splay angles	0º, 2.5º, 5º, 7.5º, 10º
ACCESSORIES
L 35 BF	Bumper frame
L 35 UB	U-bracket
B 15 SFi L35	Stacking frame for B 15 or B 15A subwoofers
B 18 SFi L35	Stacking frame for B 18 subwoofer
SPS20	Pole bar
ANNOTATION
*	Whole space, 1W / 1m, on axis
**	According to EIA-426B Standard (based on RMS Voltage)
***	Max Peak SPL = Sensitivity + 10log10(Continuous Power) + 12 dB Crest Factor
